Battery Charging & Discharging Device
ET-Series
Battery Charging & Discharging Device BE-ET series

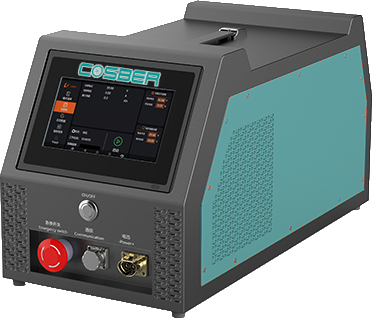

The BE-ET5060T is a regenerative charging and discharging unit for traction battery modules. Its bidirectional AC/DC converter feeds the energy of the module back into the mains supply during discharging and converts mains power into the set DC voltage for charging.
- Applications:
Battery modules after repair
modules prepared for transport
modules inside a battery pack - Charging power up to 6 kW with energy return
- Four charging and discharging modes
- CAN communication and external acquisition modules
- Full data recording and OTA software update
Scope of delivery:
- Battery cable 3000 mm
- communication cable 1500 mm
- mains cable 2200 mm
- quick start manual
- shipment inspection report
| Input voltage | 110–253 V AC, 50/60 Hz |
| Output voltage | 10–450 V DC |
| Output current | −60 to +60 A |
| Output power | 6 kW |
| Voltage accuracy | ±0.1 % FS |
| Current accuracy | ±0.5 % FS |
| Cell voltage acquisition | ≤ 5 mV |
| Temperature acquisition | ±1 °C |
| Power factor | 0.99 |
| Current harmonics | < 5 % |
| Communication | CAN (BMS), USB data export |
| Software update | OTA and PC |
| Operating temperature | −10 °C to +45 °C |
| Humidity (noncondensing) | 0–80 % rh |
| Dimensions (LxWxH) | 250 x 530 x 290 mm |
| Weight | 17 kg |
